Nobles Turbo Spin-Kleen ™ Washer / Dryer

    Features:

  • Stainless Steel Construction
  • Maximum System Flexibility
  • "Run Dry" Protected Pumps
  • Wide Range of Options
  • Digital Temperature Controllers
  • Total Immersion for Hard to Clean Parts
  • Single Step Process Control
  • Single Point Electrical Hook Up
  • Compact design
  • PLC Controlled
  • Ease of Maintenance
  • Advanced Spray System

    Typical Applications:

  • Removal of Chips in Hard to Reach Area
  • Oil and Grease Removal
  • Fine Particulate Removal
  • Chemical Residue Elimination
  • Temperature Control Processes
  • Application of Rust Inhibitors
  • Batch Part Processing in a Cellular Environment

MODEL T-22 T-88 T-231
Chamber Size 12" x 12" 18" x 18" 28" x 18"
Foot Print 6" x 6" x 3" 7" x 7" x 3" 8" x 7" x 4"
Tank Size 40.40 gal. 40/40 gal. 80/80 gal.
Motor 2 hp 5 hp 10 hp
Spray Pressure 60 PSI 60 PSI 60 PSI
Chamber Heat 4 KW 4 KW 8 KW
Tank Heat 4 KW per Tank 4 KW per Tank 10 KW per Tank
Agitation Optional Optional Optional
Chamber RPM 750 650 350

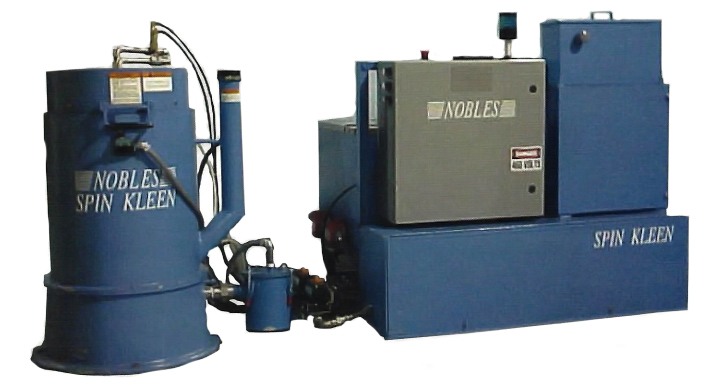

Nobles Spin Dryer
